The Story
Where would you normally use Stainless Wire Balustrade Kit C2 ?
This kit is only compatible with posts already pre-inserted with rivet nuts. If you would like the version of this kit with rivet nuts included, see stainless steel wire kit c

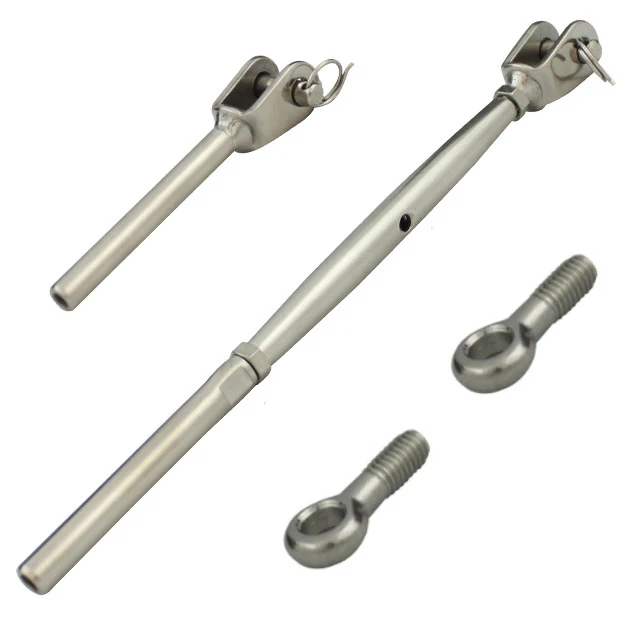

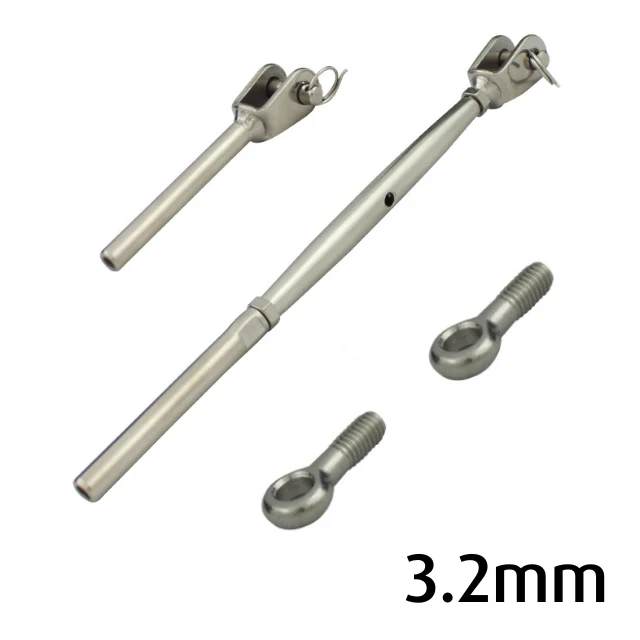

What parts make up the kit?
1 x SSW050-6 (Long Fork Bottle Screw)
1 x SSW053-6 (Fork Terminal)
2 x SSW057-6 (Eye Bolt)
What are the fittings made out of ?
316 Stainless Steel, which means they can be used both in external and internal application.
Which wire cable rope is best suited?
The fittings will work only with 3.2mm stainless wire cable rope.
1 x 19 configuration for the cable is the best fit, but 7 x 7 and 7 x 19 will also work.
Which tools do I need?
The SSW050-6 (Bottle Screw) and SSW053-6 (Fork Terminal) require the use of the IF120X (Hydraulic Swager) to fasten the fitting to the wire.
Other tools that will be handy to complete the job are IF122X (Wire Cutter) and IF133X (Spanner Tensioner).
Do you have any instructions on how to install the kit?
We sure do. Click on this link to download a PDF.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
Where would you normally use Stainless Wire Balustrade Kit C2 ?
This kit is only compatible with posts already pre-inserted with rivet nuts. If you would like the version of this kit with rivet nuts included, see stainless steel wire kit c
What parts make up the kit?
1 x SSW050-6 (Long Fork Bottle Screw)
1 x SSW053-6 (Fork Terminal)
2 x SSW057-6 (Eye Bolt)
What are the fittings made out of ?
316 Stainless Steel, which means they can be used both in external and internal application.
Which wire cable rope is best suited?
The fittings will work only with 3.2mm stainless wire cable rope.
1 x 19 configuration for the cable is the best fit, but 7 x 7 and 7 x 19 will also work.
Which tools do I need?
The SSW050-6 (Bottle Screw) and SSW053-6 (Fork Terminal) require the use of the IF120X (Hydraulic Swager) to fasten the fitting to the wire.
Other tools that will be handy to complete the job are IF122X (Wire Cutter) and IF133X (Spanner Tensioner).
Do you have any instructions on how to install the kit?
We sure do. Click on this link to download a PDF.
